Train Antennas & Cables
Antennas
![](/files/images/styles/section/gul-linje-5_c41eacc6.png)
![](/files/images/styles/section/tagantenn-lagprofil-mimo_85dfa545.png)

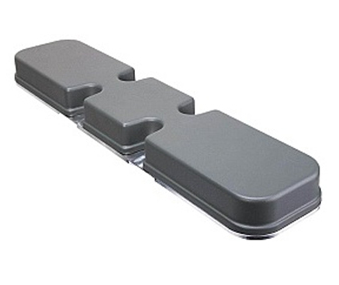

Low profile MIMO
GSM-R 2G/GSM, 3G, 4G, GPS/Glonass, WiFi 2,4 and 5,8Ghz
A Train antenna, GSM-R low profile in MIMO design. This antenna fits directly on the Kathrein mount which makes it easy to install. Area of use is GSM-R but it can also handle GSM / 2G / 3G / 4G and WiFi.
Frequency range 790-806, 806-870, 870-960, 1710-2170, 2400-2700 MHz
5G variants are available of this antenna, contact us.
![](/files/images/styles/section/tagantenn-mimo_27d06d0c.png)

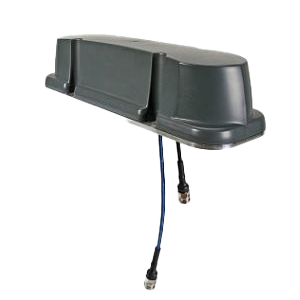

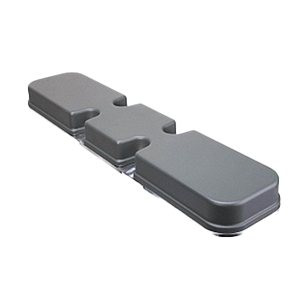

MIMO
GSM-R 2/3/4/5G and WiFi
Omni-directional MIMO broadband antenna is installed on the roof of all types of trains. It is designed to meet the special requirements of railway applications including high current and high voltage protection.
- GSM-R / 2G / 3G / 4G / 5G and WiFi 2.4 / 5 GHz
- MIMO 2x N / f
- EN 50155 and EN 45545-2 approved
- Built-in ground plan that allows it to be mounted on plastic surfaces
![](/files/images/styles/section/tagantenn-lagprofil_2540bb21.png)

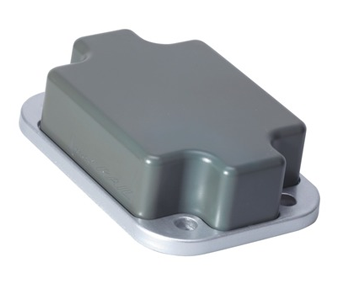

Antenna low profile
Train antenna GSM-R, low profile. This antenna fits directly on the Kathrein mount which makes it easy to install. Area of use is GSM-R but it can also handle GSM / 2G / 3G / 4G and WiFi.
- 790-806, 806-870, 870-960, 1710-2170, 2400-2700 MHz.
![](/files/images/styles/section/tagantenn-wifi-24-och-5-ghz-med-riktverkan_75576a5b.png)

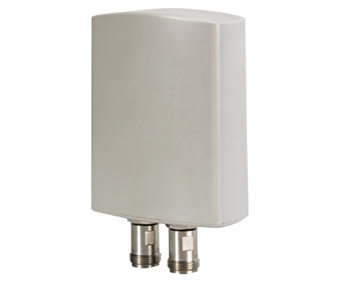

Antenna WiFi 2.4 and 5 GHz with directional effect
Small directional WiFi antenna with 9 dBi gain
Double tilt +/- 45 ° for 2x2 WiFi MIMO antenna configuration
WLAN IEEE 802.11 a / h / p / n - WiFi band 2.4 - 2.485 or 5.15 - 5.935 GHz
Robust design, meets EN 50155 and EN 50125-3 railway standards
Fire protection classified according to EN 45545-2 and NFPA130
For outdoor and indoor applications
IP 66 and IP 67
Wall bracket included
![](/files/images/styles/section/tagantenn-hajfena_1fdcb19b.png)

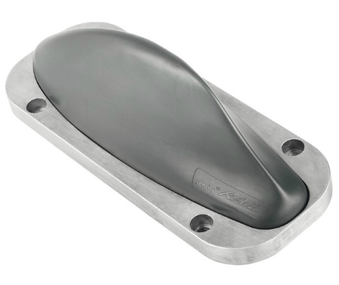

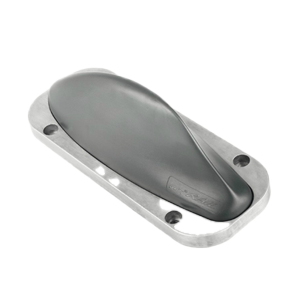

Antenna shark fin
GSM-R, 2G / 3G / 4G / 5G, GPS, Wi-Fi 4 / Wi-Fi 6 bands.
Frequency range: 698-806, 806-960, 1710-2170, 2400-2700, 2700-3300, 3300-4900, 4900-6425 MHz.
Train antenna for GSM 900, GSM 1800, GSM 1900, UMTS, LTE, WiFi and WiMAX 2.4, 3.5, 5.3 and 5.8 GHz bands as well as GPS.
- Robust construction, meets EN 50155 railway standard.
- Fire rated according to NFPA-130 / EN45545-2
- Also works on non-metallic surfaces. = ground level free.
- Grounding kits are available.
- Cable protection is available as an accessory.
Cables
![](/files/images/styles/section/gul-linje-4_48384489.png)
![](/files/images/styles/section/tagantennkabel-spuma240_6c8671ca.png)

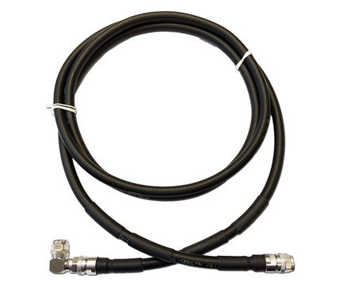

Antenna cable Spuma240
Low loss cable 6.15 mm
Approved according to EN45545-2 for installation in railway vehicles.
See finished lengths and contacting in article description, other lengths and contacting are manufactured as desired
Measurement protocol - requirements are set by the Swedish Transport Agency that the antenna cable for train installation must have a measurement protocol.
![](/files/images/styles/section/tagantennkabel-spuma-400_168c63f8.png)

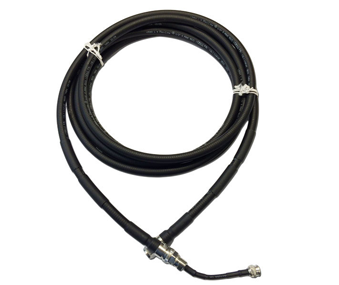

Antenna cable Spuma400
Low loss cable 12.3mm
Approved according to EN45545-2 for installation in railway vehicles.
See finished lengths and contacting in article description. Other lengths and contacts are manufactured as desired
Measurement protocol - requirements are set by the Swedish Transport Agency that the antenna cable for train installation must have a measurement protocol after installation.
